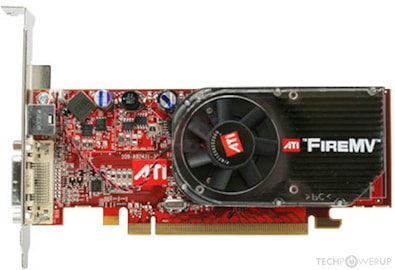

The FireMV 2250 was a professional graphics card by ATI, launched on April 20th, 2007. Built on the 90 nm process, and based on the RV516 graphics processor, the card supports DirectX 9.0c. Since FireMV 2250 does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The RV516 graphics processor is a relatively small chip with a die area of only 100 mm² and 105 million transistors. It features 4 pixel shaders and 2 vertex shaders, 4 texture mapping units, and 4 ROPs. Due to the lack of unified shaders you will not be able to run recent games at all (which require unified shader/DX10+ support). ATI has paired 256 MB DDR2 memory with the FireMV 2250, which is connected using a 128-bit memory interface. The GPU is operating at a frequency of 600 MHz, memory is running at 400 MHz (800 Mbps effective).
Being a single-slot card, the ATI FireMV 2250 does not require any additional power connector, its power draw is rated at 20 W maximum. Display outputs include: 1x S-Video, 1x DMS-59. FireMV 2250 is connected to the rest of the system using a PCI-Express 1.0 x16 interface. The card's dimensions are 170 mm x 69 mm x 23 mm, and it features a single-slot cooling solution.
