ATI FireMV 2260
- Graphics Processor
- RV620
- Cores
- 40
- TMUs
- 4
- ROPs
- 4
- Memory Size
- 256 MB
- Memory Type
- DDR2
- Bus Width
- 64 bit
GPU
Bottom
Recommended Gaming Resolutions:
- 640x480
- 1280x720
- 1366x768

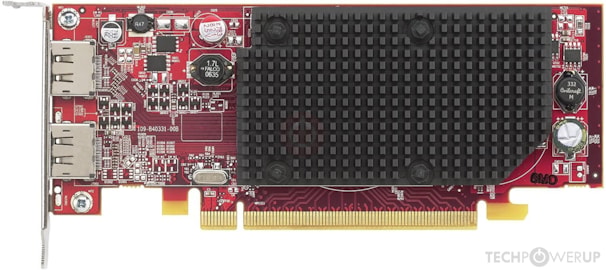

The FireMV 2260 was a professional graphics card by ATI, launched in April 2008. Built on the 55 nm process, and based on the RV620 graphics processor, the card supports DirectX 10.1. Since FireMV 2260 does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The RV620 graphics processor is a relatively small chip with a die area of only 67 mm² and 181 million transistors. It features 40 shading units, 4 texture mapping units, and 4 ROPs. ATI has paired 256 MB DDR2 memory with the FireMV 2260, which is connected using a 64-bit memory interface. The GPU is operating at a frequency of 500 MHz, memory is running at 500 MHz (1000 Mbps effective).
Being a single-slot card, the ATI FireMV 2260 does not require any additional power connector, its power draw is rated at 15 W maximum. Display outputs include: 4x mini-DisplayPort. FireMV 2260 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card a single-slot cooling solution.
Being a single-slot card, the ATI FireMV 2260 does not require any additional power connector, its power draw is rated at 15 W maximum. Display outputs include: 4x mini-DisplayPort. FireMV 2260 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card a single-slot cooling solution.
Graphics Processor
Graphics Card
- Release Date
- Apr 2008
- Announced
- Mar 12th, 2008
- Generation
-
FireMV Multi-View
(2000)
- Production
- End-of-life
- Bus Interface
- PCIe 2.0 x16
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- GPU Clock
- 500 MHz
- Memory Clock
-
500 MHz
1000 Mbps effective
Memory
- Memory Size
- 256 MB
- Memory Type
- DDR2
- Memory Bus
- 64 bit
- Bandwidth
- 8.000 GB/s
Render Config
- Shading Units
- 40
- TMUs
- 4
- ROPs
- 4
- Compute Units
- 2
Theoretical Performance
- Pixel Rate
- 2.000 GPixel/s
- Texture Rate
- 2.000 GTexel/s
- FP32
- 40.00 GFLOPS
Numeric Format Support
- Vector
-
INT4INT8INT16INT32FP16BF16FP32FP64
- Matrix
- Not Supported
Board Design
- Slot Width
- Single-slot
- Length
- 168 mm
6.6 inches
- Height
- 69 mm
2.7 inches
- TDP
- 15 W
- Suggested PSU
- 200 W
- Outputs
- 4x mini-DisplayPort
- Power Connectors
- None
- Board Number
- B403-31
Graphics Features
- DirectX
- 10.1 (10_1)
- OpenGL
- 3.3
- OpenCL
- N/A
- Vulkan
- N/A
- Shader Model
- 4.1
RV620 GPU Notes
| Mobile Variant: M82 / M84 Codename: Koopa Shader ISA: VLIW5 Graphics/Compute: GFX3 Display Core Engine: 3.0 Unified Video Decoder: 1.0 Latest Drivers: Windows XP / 8: Catalyst Software Suite 13.1 / 13.4 Beta Windows Vista / 7: Catalyst Software Suite 13.9 |
