Skip to main content

Thank you for visiting nature.com. You are using a browser version with limited support for CSS. To obtain the best experience, we recommend you use a more up to date browser (or turn off compatibility mode in Internet Explorer). In the meantime, to ensure continued support, we are displaying the site without styles and JavaScript.

  • Article
  • Published:

A 7-eV bandgap semiconductor based on silicon-doped α-(AlxGa1−x)2O3

Nature volume 658, pages 623–628 (2026) Cite this article

View saved research

Abstract

In rectifying power electronics, wider-bandgap (Eg) semiconductors allow higher efficiency and power density with the Baliga figure of merit proportional to Eg5.5 (refs. 1,2). Unfortunately, the unique ability of semiconductors to have their conductivities controllably modulated over orders of magnitude by equilibrium doping methods becomes increasingly elusive as the bandgap increases. Increasing demand for wider-bandgap semiconductors has led to many materials previously considered insulators—including GaN, SiC, AlN, Ga2O3 and GeO2—to emerge as useful semiconductors after decreasing defect densities and finding appropriate dopants. Here we report silicon-doped α-(AlxGa1−x)2O3 films with bandgaps exceeding 7.0 eV grown by suboxide molecular-beam epitaxy, surpassing that of cubic boron nitride, the next-widest-bandgap semiconductor known3,4,5. In the colossal-bandgap regime, >6 eV, our silicon-doped α-(AlxGa1−x)2O3 films have room-temperature conductivities over 100 million times higher than all previous reports6. We fabricate a Schottky diode and a field-effect transistor (the AlphaFET) with colossal-bandgap channels. These α-(AlxGa1−x)2O3 films and devices use sapphire, an abundant, inexpensive substrate with excellent quality that is produced at massive scale, facilitating the development and adoption of colossal-bandgap electronics. Our achievement breaks the trend of increasing synthesis difficulty, cost and small size of ever-wider-bandgap semiconductors, for example, diamond and cubic boron nitride.

This is a preview of subscription content, access via your institution

Access options

Access through your institution

Access Nature and 54 other Nature Portfolio journals

Get Nature+, our best-value online-access subscription

$32.99 / 30 days cancel any time
Learn more

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

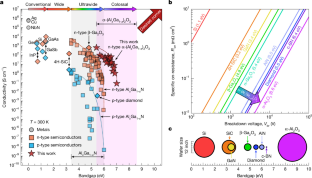

Fig. 1: Benchmarking α-(AlxGa1–x)2O3.

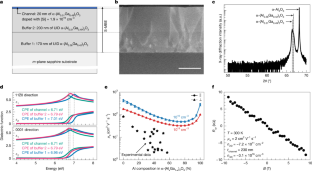

Fig. 2: Characterization of as-grown α-(AlxGa1–x)2O3.

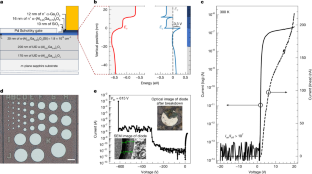

Fig. 3: Electrical characteristics of an AlphaDiode.

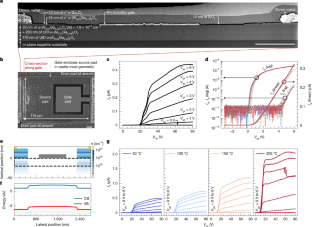

Fig. 4: Electrical characteristics of an AlphaFET.

Similar content being viewed by others

Explore related subjects

Discover the latest articles and news in related subjects.

Data availability

The data supporting the results of this study are available in the paper, its Extended Data figures and the Supplementary Information. The raw data used to create figures are available upon request to the corresponding author.

References

  1. Baliga, B. J. in Fundamentals of Power Semiconductor Devices 14–16 (Springer, 2019).

  2. Slobodyan, O. et al. Analysis of the dependence of critical electric field on semiconductor bandgap. J. Mater. Res. 37, 849–865 (2022).

    Article  ADS  CAS  Google Scholar

  3. Chrenko, R. M. Ultraviolet and infrared spectra of cubic boron nitride. Solid State Commun. 14, 511–515 (1974).

    Article  ADS  CAS  Google Scholar

  4. Watanabe, K., Taniguchi, T. & Kanda, H. Ultraviolet luminescence spectra of boron nitride single crystals grown under high pressure and high temperature. Phys. Status Solidi A 201, 2561–2565 (2004).

    Article  ADS  CAS  Google Scholar

  5. Evans, D. A. et al. Determination of the optical band-gap energy of cubic and hexagonal boron nitride using luminescence excitation spectroscopy. J. Phys. Condens. Matter 20, 075233 (2008).

    Article  ADS  Google Scholar

  6. Okumura, H. & Varley, J. B. MOCVD growth of Si-doped α-(AlGa)2O3 on m-plane α-Al2O3 substrates. Jpn J. Appl. Phys. 63, 075502 (2024).

    Article  CAS  Google Scholar

  7. Mishra, U. K., Parikh, P. & Yi-Feng, W. AlGaN/GaN HEMTs—an overview of device operation and applications. Proc. IEEE 90, 1022–1031 (2002).

    Article  ADS  CAS  Google Scholar

  8. Łukasiak, L. & Jakubowski, A. History of semiconductors. J. Telecomm. Inf. Technol. 39, 3–9 (2010).

    Google Scholar

  9. She, X., Huang, A. Q., Lucia, O. & Ozpineci, B. Review of silicon carbide power devices and their applications. IEEE Trans. Ind. Electron. 64, 8193–8205 (2017).

    Article  ADS  Google Scholar

  10. Amano, H. et al. The 2020 UV emitter roadmap. J. Phys. D 53, 503001 (2020).

    Article  CAS  Google Scholar

  11. Kim, E. et al. XHEMTs on ultrawide bandgap single-crystal AlN substrates. Adv. Electron. Mater. 12, e00393 (2026).

    Article  CAS  Google Scholar

  12. Lyons, J. L., Wickramaratne, D. & Janotti, A. Dopants and defects in ultra-wide bandgap semiconductors. Curr. Opin. Solid State Mater. Sci. 30, 101148 (2024).

    Article  ADS  CAS  Google Scholar

  13. Jinno, R. et al. Crystal orientation dictated epitaxy of ultrawide-bandgap 5.4- to 8.6-eV α-(AlGa)2O3 on m-plane sapphire. Sci. Adv. 7, eabd5891 (2021).

    Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

  14. Steele, J. et al. Epitaxial growth of α-(AlxGa1−x)2O3 by suboxide molecular-beam epitaxy at 1 µm/h. APL Mater. 12, 041113 (2024).

    Article  ADS  CAS  Google Scholar

  15. Okumura, H., Fassion, A. & Mannequin, C. Si-doped (AlGa)2O3 growth on a-, m- and r-plane α-Al2O3 substrates by molecular beam epitaxy. Jpn J. Appl. Phys. 63, 055502 (2024).

    Article  CAS  Google Scholar

  16. Dang, G. T., Tagashira, Y., Yasuoka, T., Liu, L. & Kawaharamura, T. Conductive Si-doped α-(AlxGa1−x)2O3 thin films with the bandgaps up to 6.22 eV. AIP Adv. 10, 115019 (2020).

    Article  ADS  CAS  Google Scholar

  17. Stall, R. A. Growth of refractory oxide films using solid oxygen sources in a molecular beam epitaxy apparatus. J. Vac. Sci. Technol. B 1, 135–137 (1983).

    Article  CAS  Google Scholar

  18. Aizaki, N. & Tatsumi, T. Boron doping in silicon molecular beam epitaxial film by coevaporation of boron oxide. In Extended Abstracts of the 17th Conference on Solid State Devices and Materials 301 (The Japan Society of Applied Physics, 1985).

  19. Vogt, P. et al. Adsorption-controlled growth of Ga2O3 by suboxide molecular-beam epitaxy. APL Mater. 9, 031101 (2021).

    Article  ADS  CAS  Google Scholar

  20. Wickramaratne, D., Varley, J. B. & Lyons, J. L. Donor doping of corundum (AlxGa1−x)2O3. Appl. Phys. Lett. 121, 042110 (2022).

    Article  ADS  CAS  Google Scholar

  21. Steele, J. et al. Growth of conductive Si-doped α-Ga2O3 by suboxide molecular-beam epitaxy. APL Mater. 13, 101117 (2025).

    Article  ADS  CAS  Google Scholar

  22. Jena, D. Quantum Physics of Semiconductor Materials and Devices https://doi.org/10.1093/oso/9780198856849.001.0001 (Oxford Univ. Press, 2022).

  23. Oshima, Y. et al. Halide vapor phase epitaxy of a thick c-plane α-Ga2O3 film on a high-quality α-Cr2O3/sapphire template. J. Appl. Phys. 139, 075302 (2026).

    Article  ADS  CAS  Google Scholar

  24. Akselrod, M. S. & Bruni, F. J. Modern trends in crystal growth and new applications of sapphire. J. Cryst. Growth 360, 134–145 (2012).

    Article  ADS  CAS  Google Scholar

  25. Khattak, C. P. & Schmid, F. Growth of the world’s largest sapphire crystals. J. Cryst. Growth 225, 572–579 (2001).

    Article  ADS  CAS  Google Scholar

  26. Kang Sen et al. Growth of 720 kg large-sized sapphire crystal by modified Kyropoulos method. J. Synth. Cryst. 50, 1397–1401 (2021).

    Google Scholar

  27. Lu, Z. & Kimbel, S. Growth of 450 mm diameter semiconductor grade silicon crystals. J. Cryst. Growth 318, 193–195 (2011).

    Article  ADS  CAS  Google Scholar

  28. Bondokov, R. T., Hogan, K., Norbury, G. Q., Matsumoto, S. & Grandusky, J. Development of 100 mm AlN single-crystal growth and subsequent substrate preparation. Phys. Status Solidi B 262, 2500032 (2025).

    Article  ADS  CAS  Google Scholar

  29. Kaneki, S., Konno, T., Mori, H. & Fujikura, H. Quartz-free hydride vapor phase epitaxy for production of large size GaN-on-GaN epitaxial wafers. Appl. Phys. Express 18, 055502 (2025).

    Article  ADS  CAS  Google Scholar

  30. Igarashi, T. et al. Growth of 6 inch diameter β-Ga2O3 crystal by the vertical Bridgman method. Phys. Status Solidi B 262, 2400444 (2025).

    Article  ADS  CAS  Google Scholar

  31. Nelz, R. et al. Toward wafer-scale diamond nano- and quantum technologies. APL Mater. 7, 011108 (2019).

    Article  ADS  Google Scholar

  32. Li, W. et al. Synergistic crucible design and thermal-flow management for enhanced 4-inch AlN single crystal PVT growth: a combined numerical and experimental investigation. CrystEngComm 27, 3219–3228 (2025).

    Article  CAS  Google Scholar

  33. Taniguchi, T. & Yamaoka, S. Spontaneous nucleation of cubic boron nitride single crystal by temperature gradient method under high pressure. J. Cryst. Growth 222, 549–557 (2001).

    Article  ADS  CAS  Google Scholar

  34. Taniguchi, T., Teraji, T., Koizumi, S., Watanabe, K. & Yamaoka, S. Appearance of n-type semiconducting properties of cBN single crystals grown at high pressure. Jpn J. Appl. Phys. 41, L109–L111 (2002).

    Article  ADS  CAS  Google Scholar

  35. Taniguchi, T. & Watanabe, K. Synthesis of high-purity boron nitride single crystals under high pressure by using Ba–BN solvent. J. Cryst. Growth 303, 525–529 (2007).

    Article  ADS  CAS  Google Scholar

  36. Phillpot, S. R. & McGaughey, A. J. H. Introduction to thermal transport. Mater. Today 8, 18–20 (2005).

    Article  CAS  Google Scholar

  37. Hilfiker, M. et al. Anisotropic dielectric function, direction dependent bandgap energy, band order, and indirect to direct gap crossover in α-(AlxGa1−x)2O3 (≤ x ≤ 1). Appl. Phys. Lett. 121, 052101 (2022).

    Article  ADS  CAS  Google Scholar

  38. Read, W. T. Scattering of electrons by charged dislocations in semiconductors. Lond. Edinb. Dublin Philos. Mag. J. Sci. 46, 111–131 (1955).

    Article  CAS  Google Scholar

  39. Cottrell, A. H. & Bilby, B. A. Dislocation theory of yielding and strain ageing of iron. Proc. Phys. Soc. A 62, 49–62 (1949).

    Article  ADS  Google Scholar

  40. Thompson, K., Flaitz, P. L., Ronsheim, P., Larson, D. J. & Kelly, T. F. Imaging of arsenic cottrell atmospheres around silicon defects by three-dimensional atom probe tomography. Science 317, 1370–1374 (2007).

    Article  ADS  CAS  PubMed  Google Scholar

  41. Ranga, P. et al. Delta-doped β-Ga2O3 thin films and β-(Al0.26Ga0.74)2O3/β-Ga2O3 heterostructures grown by metalorganic vapor-phase epitaxy. Appl. Phys. Express 13, 045501 (2020).

    Article  ADS  CAS  Google Scholar

  42. Bagheri, P. et al. High electron mobility in AlN:Si by point and extended defect management. J. Appl. Phys. 132, 185703 (2022).

    Article  ADS  CAS  Google Scholar

  43. Mishima, O., Tanaka, J., Yamaoka, S. & Fukunaga, O. High-temperature cubic boron nitride p–n junction diode made at high pressure. Science 238, 181–183 (1987).

    Article  ADS  CAS  PubMed  Google Scholar

  44. Birner, S. et al. nextnano: general purpose 3-D simulations. IEEE Trans. Electron Devices 54, 2137–2142 (2007).

    Article  ADS  CAS  Google Scholar

  45. Bhattacharya, D. et al. Dielectric assisted liftoff enabled simultaneous low n- and p- differential contact resistivities in ultrawide bandgap AlGaN pn diodes on bulk AlN. Jpn J. Appl. Phys. 65, 036503 (2026).

    Article  ADS  CAS  Google Scholar

  46. Bajaj, S., Akyol, F., Krishnamoorthy, S., Zhang, Y. & Rajan, S. AlGaN channel field effect transistors with graded heterostructure ohmic contacts. Appl. Phys. Lett. 109, 133508 (2016).

    Article  ADS  Google Scholar

  47. Ran, J. et al. Semipolar (112) AlN/AlGaN quasi-vertical Schottky barrier diodes grown on m-sapphire. Appl. Phys. Lett. 126, 223501 (2025).

    Article  ADS  CAS  Google Scholar

  48. Vanjari, S. C., Bhat, A. K., Smith, M. D. & Kuball, M. Double drift layers to minimize on-resistance in 2.7-kV β-Ga2O3 (001) vertical trench Schottky barrier diodes. Appl. Phys. Lett. 128, 103501 (2026).

    Article  ADS  CAS  Google Scholar

  49. Kneissl, M., Seong, T.-Y., Han, J. & Amano, H. The emergence and prospects of deep-ultraviolet light-emitting diode technologies. Nat. Photon. 13, 233–244 (2019).

    Article  ADS  CAS  Google Scholar

  50. Zhang, Y., Liu, M., Jena, D. & Khalsa, G. Tight-binding band structure of β- and α-phase Ga2O3 and Al2O3. J. Appl. Phys. 131, 175702 (2022).

    Article  ADS  CAS  Google Scholar

  51. Thompson, K. et al. In situ site-specific specimen preparation for atom probe tomography. Ultramicroscopy 107, 131–139 (2007).

    Article  CAS  PubMed  Google Scholar

  52. Sarker, J. et al. Microscopic and spectroscopic investigation of (AlxGa1–X)2O3 films: unraveling the impact of growth orientation and aluminum content. Adv. Mater. Interfaces 12, 2301016 (2025).

  53. Li, W. Electrical transport limited by electron–phonon coupling from Boltzmann transport equation: an ab initio study of Si, Al, and MoS2. Phys. Rev. B 92, 075405 (2015).

    Article  ADS  Google Scholar

  54. Poncé, S., Margine, E. R., Verdi, C. & Giustino, F. EPW: electron–phonon coupling, transport and superconducting properties using maximally localized Wannier functions. Comput. Phys. Commun. 209, 116–133 (2016).

    Article  ADS  MathSciNet  Google Scholar

  55. Poncé, S. et al. First-principles predictions of Hall and drift mobilities in semiconductors. Phys. Rev. Res. 3, 043022 (2021).

    Article  Google Scholar

  56. Giustino, F. Electron–phonon interactions from first principles. Rev. Mod. Phys. 89, 015003 (2017).

    Article  ADS  MathSciNet  Google Scholar

  57. Leveillee, J., Zhang, X., Kioupakis, E. & Giustino, F. Ab initio calculation of carrier mobility in semiconductors including ionized-impurity scattering. Phys. Rev. B 107, 125207 (2023).

    Article  ADS  CAS  Google Scholar

  58. Ridley, B. K. Quantum Processes in Semiconductors 5th edn (Oxford Univ. Press, 2013).

  59. Pant, N., Deng, Z. & Kioupakis, E. High electron mobility of AlxGa1−xN evaluated by unfolding the DFT band structure. Appl. Phys. Lett. 117, 242105 (2020).

    Article  ADS  CAS  Google Scholar

  60. Wang, T., Li, W., Ni, C. & Janotti, A. Band gap and band offset of Ga2O3 and (AlxGa1−x)2O3 alloys. Phys. Rev. Appl. 10, 011003 (2018).

    Article  ADS  CAS  Google Scholar

  61. Hohenberg, P. & Kohn, W. Inhomogeneous electron gas. Phys. Rev. 136, B864–B871 (1964).

    Article  ADS  MathSciNet  Google Scholar

  62. Kohn, W. & Sham, L. J. Self-consistent equations including exchange and correlation effects. Phys. Rev. 140, A1133–A1138 (1965).

    Article  ADS  MathSciNet  Google Scholar

  63. Baroni, S., Giannozzi, P. & Testa, A. Green’s-function approach to linear response in solids. Phys. Rev. Lett. 58, 1861–1864 (1987).

    Article  ADS  CAS  PubMed  Google Scholar

  64. Giannozzi, P., de Gironcoli, S., Pavone, P. & Baroni, S. Ab initio calculation of phonon dispersions in semiconductors. Phys. Rev. B 43, 7231–7242 (1991).

    Article  ADS  CAS  Google Scholar

  65. Giannozzi, P. et al. Advanced capabilities for materials modelling with Quantum ESPRESSO. J. Phys. Condens. Matter 29, 465901 (2017).

    Article  CAS  PubMed  Google Scholar

  66. Lee, H. et al. Electron–phonon physics from first principles using the EPW code. npj Comput. Mater. 9, 156 (2023).

    Article  CAS  Google Scholar

  67. Marzari, N. & Vanderbilt, D. Maximally localized generalized Wannier functions for composite energy bands. Phys. Rev. B 56, 12847–12865 (1997).

    Article  ADS  CAS  Google Scholar

  68. Souza, I., Marzari, N. & Vanderbilt, D. Maximally localized Wannier functions for entangled energy bands. Phys. Rev. B 65, 035109 (2001).

    Article  ADS  Google Scholar

  69. Hamann, D. R. Optimized norm-conserving Vanderbilt pseudopotentials. Phys. Rev. B 88, 085117 (2013).

    Article  ADS  Google Scholar

  70. Lejaeghere, K. et al. Reproducibility in density functional theory calculations of solids. Science 351, aad3000 (2016).

    Article  PubMed  Google Scholar

  71. Setten, M. J. et al. The PseudoDojo: training and grading a 85 element optimized norm-conserving pseudopotential table. Comput. Phys. Commun. 226, 39–54 (2018).

    Article  ADS  Google Scholar

  72. Bellaiche, L. & Vanderbilt, D. Virtual crystal approximation revisited: application to dielectric and piezoelectric properties of perovskites. Phys. Rev. B 61, 7877–7882 (2000).

    Article  ADS  CAS  Google Scholar

Download references

Acknowledgements

We thank C. Chang for assistance with wire bonding sample A27.

Funding

J.S., D.B., K.N., N.A.P., M.R., D.A.M., H.G.X., D.J. and D.G.S. acknowledge support from the AFOSR/AFRL ACCESS Center of Excellence under award number FA9550-18-1-0529. This work used the Cornell Center for Materials Research Shared Facilities. Device processing was performed with the Cornell NanoScale Facility, a member of the National Nanotechnology Coordinated Infrastructure (NNCI), which is supported by the NSF (Grant NNCI 2025233). This work also made use of the Cornell Energy Systems Institute Shared Facilities partly sponsored by the NSF (Grant MRI DMR 1631282). J.S. acknowledges support from the National Science Foundation (Platform for the Accelerated Realization, Analysis, and Discovery of Interface Materials (PARADIM)), under Cooperative Agreement number DMR-2039380. The Thermo Fisher Spectra 300 X-CFEG was acquired with support from PARADIM, an NSF MIP (DMR-2039380), and Cornell University. N.A.P. acknowledges support from National Science Foundation Graduate Research Fellowship under grant number DGE2139899. S.D. and B.M. acknowledge support from National Science Foundation (NSF) under the Division of Materials Research (DMR) through grant number 2145091. I.S. and B.M. acknowledge the support from internal seed UB launch funding from the University at Buffalo and instrument support (FIB–SEM) from the Northeast Regional Defense Technology Hub. M.S. acknowledges support by NSF (grants ECCS 2329940 and OIA-2044049 Emergent Quantum Materials and Technologies), by AFOSR (grants FA9550-23-1-0574 DEF and FA9550-25-1-0196), and by the J.A. Woollam Foundation. M.K.I.S. and M.D.W. acknowledge support from the Department of Education, 84.031B Historically Black Colleges and Universities Program - P031B170007–20, and together with D.G.S., acknowledge grant PREM-DMR-2122147 with the National Science Foundation. V.-A.H., N.P. and F.G. were supported by SUPREME, one of seven centres in JUMP 2.0, a Semiconductor Research Corporation (SRC) programme sponsored by DARPA (mobility calculations), and by the Computational Materials Sciences Program funded by the US Department of Energy, Office of Science, Basic Energy Sciences, under award number DE-SC0020129 (development of the EPW code). This work used stampede3 at TACC through allocation PHY260047 from the Advanced Cyberinfrastructure Coordination Ecosystem: Services & Support (ACCESS) programme, which is supported by US National Science Foundation grant numbers 2138259, 2138286, 2138307, 2137603 and 2138296.

Author information

Author notes

  1. These authors contributed equally: Jacob Steele, Debaditya Bhattacharya

Authors and Affiliations

  1. Department of Materials Science and Engineering, Cornell University, Ithaca, NY, USA

    Jacob Steele, Naomi A. Pieczulewski, Huili G. Xing, Debdeep Jena & Darrell. G. Schlom

  2. School of Electrical and Computer Engineering, Cornell University, Ithaca, NY, USA

    Debaditya Bhattacharya, Kazuki Nomoto, Madhav Ramesh, Huili G. Xing & Debdeep Jena

  3. Department of Electrical and Computer Engineering, University of Nebraska-Lincoln, Lincoln, NE, USA

    Preston Sorensen, Ufuk Kilic & Mathias Schubert

  4. Oden Institute for Computational Engineering and Sciences, University of Texas at Austin, Austin, TX, USA

    Viet-Anh Ha, Nick Pant & Feliciano Giustino

  5. Department of Physics, University of Texas Austin, Austin, TX, USA

    Viet-Anh Ha, Nick Pant & Feliciano Giustino

  6. Department of Materials Design and Innovation, University at Buffalo, Buffalo, NY, USA

    Ihit Shukla, Shaon Das & Baishakhi Mazumder

  7. Department of Physics, Clark Atlanta University, Atlanta, GA, USA

    M. K. Indika Senevirathna & Michael D. Williams

  8. Department of Physics, Solid State Physics, Wallenberg Initiative Materials Science for Sustainability (WISE), Lund, Sweden

    Mathias Schubert

  9. Kavli Institute at Cornell for Nanoscale Science, Ithaca, NY, USA

    David A. Muller, Huili G. Xing, Debdeep Jena & Darrell. G. Schlom

  10. School of Applied and Engineering Physics, Cornell University, Ithaca, NY, USA

    David A. Muller

  11. Leibniz-Institut für Kristallzüchtung, Berlin, Germany

    Darrell. G. Schlom

Authors
  1. Jacob Steele
    View author publications

    Search author on:PubMed Google Scholar

  2. Debaditya Bhattacharya
    View author publications

    Search author on:PubMed Google Scholar

  3. Kazuki Nomoto
    View author publications

    Search author on:PubMed Google Scholar

  4. Naomi A. Pieczulewski
    View author publications

    Search author on:PubMed Google Scholar

  5. Preston Sorensen
    View author publications

    Search author on:PubMed Google Scholar

  6. Viet-Anh Ha
    View author publications

    Search author on:PubMed Google Scholar

  7. Nick Pant
    View author publications

    Search author on:PubMed Google Scholar

  8. Ihit Shukla
    View author publications

    Search author on:PubMed Google Scholar

  9. Shaon Das
    View author publications

    Search author on:PubMed Google Scholar

  10. Ufuk Kilic
    View author publications

    Search author on:PubMed Google Scholar

  11. Madhav Ramesh
    View author publications

    Search author on:PubMed Google Scholar

  12. Feliciano Giustino
    View author publications

    Search author on:PubMed Google Scholar

  13. Baishakhi Mazumder
    View author publications

    Search author on:PubMed Google Scholar

  14. M. K. Indika Senevirathna
    View author publications

    Search author on:PubMed Google Scholar

  15. Michael D. Williams
    View author publications

    Search author on:PubMed Google Scholar

  16. Mathias Schubert
    View author publications

    Search author on:PubMed Google Scholar

  17. David A. Muller
    View author publications

    Search author on:PubMed Google Scholar

  18. Huili G. Xing
    View author publications

    Search author on:PubMed Google Scholar

  19. Debdeep Jena
    View author publications

    Search author on:PubMed Google Scholar

  20. Darrell. G. Schlom
    View author publications

    Search author on:PubMed Google Scholar

Contributions

J.S. conceived of the original experiment, carried out all MBE growth, and conducted all the XRD, atomic force microscopy and Hall measurements. D.B. managed mask design, patterning of devices onto the thin films and measurement of device behaviour. J.S. and D.B. jointly wrote the article text and conducted physical property measurement system measurements. K.N. created recipes for ohmic and Schottky contacts. N.A.P. conducted all STEM imaging. P.S. handled the ellipsometry measurements with assistance from U.K. M.R. assisted D.B. with measuring the breakdown voltage of the AlphaDiodes. M.K.I.S. and M.D.W. carried out the SIMS measurements. V.-A.H., N.P. and F.G. calculated the theoretical mobilities as a function of x using density functional theory (Fig. 2e). I.S. performed focused-ion-beam specimen preparation and APT measurements. S.D. performed APT measurements and data analysis. B.M. supervised the APT experiments and data analysis. M.S. oversaw the ellipsometry measurements. D.A.M. oversaw the STEM measurements. H.G.X. and D.J. helped design the devices, assisted in analysing the results and edited the paper. D.G.S. oversaw the MBE growths, helped conceive of the experiments, assisted in the analysis of the results and was the primary editor of the article drafts.

Corresponding author

Correspondence to Darrell. G. Schlom.

Ethics declarations

Competing interests

D.G.S. has been granted US patent number 11,462,402 (4 October 2022) with the title ‘Suboxide molecular-beam epitaxy and related structures’. J.S., D.B., H.G.X., D.J. and D.G.S. have filed a provisional US patent 63/786,244 with the title ‘A procedure for growing conductive silicon-doped α-(Al,Ga)2O3 by suboxide molecular-beam epitaxy’. The patent covers the epitaxial structure described in this article that enables conductive α-(AlxGa1−x)2O3 films, as well as multiple device structures utilizing α-(AlxGa1−x)2O3 channels.

Peer review

Peer review information

Nature thanks Hironori Okumura and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data figures and tables

Extended Data Fig. 1 High-resolution transmission electron microscopy of interfaces in an AlphaFET on sample A1.

a, A cross section of the entire AlphaFET structure with all epitaxial layers labeled. b, The interface between the m-plane sapphire substrate and the initial high Tsub α-(Al0.58Ga0.42)2O3 buffer layer. Misfit dislocations are observed at the interface and are marked by the white “⊤” symbols. The interfaces are atomically sharp and flat. c, An image of the interface between the first high Tsub α-(Al0.58Ga0.42)2O3 buffer layer and the subsequent Tsub α-(Al0.51Ga0.49)2O3 buffer layer grown at moderate Tsub. d, An image of the interface between the silicon-doped α-(Al0.51Ga0.49)2O3 channel layer grown at low Tsub and the n+ regrown α-(Al0.25Ga0.75)2O3 contact layer. e, The last epitaxial interface between the regrown n+ regrown α-(Al0.25Ga0.75)2O3 and α-Ga2O3 contact layers. Misfit dislocations are also seen at this interface, and one is marked by the white “⊤” symbol.

Extended Data Fig. 2 AFM scan of sample A26.

An AFM image of a 5 µm × 5 µm region on the surface of sample A26 as a representative as-grown surface of AlphaFET structures The color gradient is linear with the size of the features on the surface.

Extended Data Fig. 3 Raw ellipsometry data.

A plot of the M12 and M33 Mueller matrix elements for sample A1 and the corresponding fit to a 4-layer model which includes the substrate, the initial high Tsub α-(Al0.58Ga0.42)2O3 buffer layer, the subsequent moderate Tsub α-(Al0.51Ga0.49)2O3 buffer layer, and the overlying silicon-doped α-(Al0.51Ga0.49)2O3 channel layer. Due to anisotropy in the crystal, the data were collected for 3 azimuthal angles 0°, 45°, and 90° to the [0001] direction. The green, red, and blue points represent data taken at 50°, 60°, and 70° angles of incidence (AOI). The dashed lines mark the fits of the data that was used to estimate Eg.

Extended Data Fig. 4 Temperature-dependent sheet resistivity and Hall measurements on sample A27.

a, A plot of Rs as a function of T. Approximately a 10× increase in Rs as sample is cooled from 300 K to 200 K. The fit is performed by assuming a constant mobility of \(\mu \) = 2 cm2/V·s which is then used to estimate the carrier density. This carrier density is then used to fit the donor density ND and donor activation energy ED. b, A plot of the electron concentration ne as extracted from temperature-dependent Hall measurements as a function of T. The carrier concentration drops with decreasing temperature indicating the start of freezing out of carriers. In a similar fashion to panel a, the carrier concentration is fit to find ND and ED.

Extended Data Fig. 5 Measurements on A27 to determine the efficacy of regrowth for ohmic contacts.

a, TLM measurements of the contacts as measured through the regrown layer. Inset is the I-V curves for each contact spacing that yields the resistance as a function of spacing in the primary plot. b, An I-V plot of measurements taken through the channel without regrowth.

Extended Data Fig. 6 θ−2θ scans of samples A8 and A10 over the range of 2θ = (50–70)°.

The ‘*’ symbol marks the 300 reflection of the Al2O3 substrate. Both A8 and A10 show sharp 300 α-(AlxGa1−x)2O3 reflections that correspond to the doped overlayers with x = 0.52 and 0.54, respectively.

Extended Data Fig. 7 θ−2θ scans of samples A8 and A9 over the range of 2θ = (64–70)°.

The ‘*’ symbol marks the 300 reflection of the Al2O3 substrate. The intense 300 reflection for α-(Al0.52Ga0.48)2O3 corresponds to the overlayer of sample A8. The low intensity hump on the right edge of the 300 reflection in sample A8 is the buffer layer that was deposited at high Tsub prior to the overlayer. In sample A9, only a broad, weak reflection is seen, which is consistent with limited crystalline, epitaxial α-(AlxGa1−x)2O3 successfully being grown.

Extended Data Fig. 8 Results of SIMS and APT measurements on sample A1.

Depth profile of a, aluminium ion intensity b, gallium ion intensity c, silicon concentration by SIMS. The solid line shows the as-measured silicon concentration. The horizontal dashed line represents the estimated 1.18 × 1019 cm−3 noise-floor for silicon concentrations in the SIMS set-up. d, The spatial distribution of silicon (grey), aluminium (red), and gallium (blue) in the needle-shaped tip used for APT. e, The distribution of aluminium and gallium atoms in the green region of panel d compared to a binomial spread. f, The distribution of aluminium and gallium atoms in the blue region of panel d compared to a binomial spread.

Extended Data Fig. 9 The theoretical scattering mechanism and directional dependent maximum values of µe for α-(AlxGa1–x)2O3 as a function of x with varying ne.

a, ne = 1016 cm−3. b, ne = 1017 cm−3. c, ne = 1018 cm−3. d, ne = 1019 cm−3, where the ionized impurity density is assumed to be equal to ne. The theoretical maximum values of µe are calculated including contributions from phonon scattering (ph), ionized impurity scattering (ii), and alloy scattering. The solid ∥ line is for electron transport parallel to the (001) plane, and the dashed ⊥ line is perpendicular to the (001) plane.

Extended Data Table 1 The compositions, thicknesses, estimated channel Eg, and the room-temperature electronic properties measured by the Hall effect of the channel including ne, µe, Rs and σ of each film in this study
Full size table

Supplementary information

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Steele, J., Bhattacharya, D., Nomoto, K. et al. A 7-eV bandgap semiconductor based on silicon-doped α-(AlxGa1−x)2O3. Nature 658, 623–628 (2026). https://doi.org/10.1038/s41586-026-11085-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Version of record:

  • Issue date:

  • DOI: https://doi.org/10.1038/s41586-026-11085-3

Search

Advanced search

Quick links

Nature Briefing

Sign up for the Nature Briefing newsletter — what matters in science, free to your inbox daily.

Get the most important science stories of the day, free in your inbox. Sign up for Nature Briefing
