AMD Radeon PRO W7800

Graphics Processor
Navi 31
Cores
4480
TMUs
280
ROPs
128
Memory Size
32 GB
Memory Type
GDDR6
Bus Width
256 bit
GPU Chip
GPU
I/O
I/O

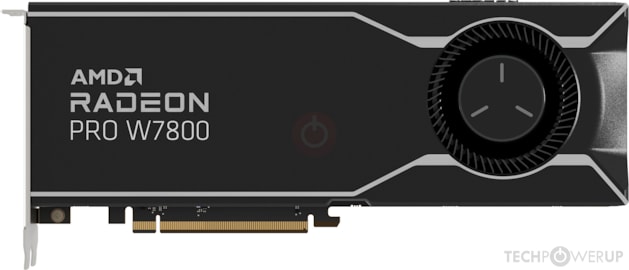

The Radeon PRO W7800 is a professional graphics card by AMD, launched on May 26th, 2023. Built on the 5 nm process, and based on the Navi 31 graphics processor, the card supports DirectX 12 Ultimate. The Navi 31 graphics processor is a very large chip with a die area of 529 mm² and 57.7 billion transistors. Unlike the fully unlocked Radeon RX 7900 XTX, which uses the same GPU but has all 6144 shaders enabled, AMD has disabled some shading units on the Radeon PRO W7800 to reach the product's target shader count. It features 4480 shading units, 280 texture mapping units, and 128 ROPs. Also included are 140 Matrix Cores which help improve the speed of machine learning applications with support for the INT4 and INT8 data formats. The GPU also has 70 raytracing acceleration cores. AMD has paired 32 GB GDDR6 memory with the Radeon PRO W7800, which is connected using a 256-bit memory interface. The GPU is operating at a frequency of 1895 MHz, which can be boosted up to 2525 MHz, memory is running at 2250 MHz (18 Gbps effective).
Being a dual-slot card, the AMD Radeon PRO W7800 draws power from 2x 8-pin power connectors, with power draw rated at 260 W maximum. Display outputs include: 3x DisplayPort 2.1, 1x mini-DisplayPort 2.1. Radeon PRO W7800 is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card's dimensions are 280 mm x 110 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 2,499 US Dollars.

Graphics Processor

GPU Name
Navi 31
Architecture
RDNA 3
Foundry
TSMC
Process Size
5 nm
MCD Process
6 nm
Process Type
N5 / N6 FinFET
Transistors
57.7 billion
GCD Transistors
45,400 million
MCD Transistors
2,050 million x6
Density
109.1M / mm²
GCD Density
150.2M / mm²
MCD Density
54.64M / mm²
Die Size
529 mm²
GCD Die Size
304.35 mm²
MCD Die Size
37.52 mm² x6
Chip Package
FCBGA-2857
Package Size
55 mm × 47.5 mm

Graphics Card

Release Date
May 26th, 2023
Announced
Apr 13th, 2023
Generation
Radeon Pro Navi
(Navi III Series)
Predecessor
Radeon Pro Vega
Production
Active
Driver Support
Active
Launch Price
2,499 USD
Bus Interface
PCIe 4.0 x16

Relative Performance

GeForce RTX 5090
237%
GeForce RTX 4090
181%
GeForce RTX 5080
156%
GeForce RTX 4080 SUPER
139%
GeForce RTX 4080
138%
Radeon RX 7900 XTX
138%
GeForce RTX 5070 Ti
136%
Radeon RX 9070 XT
130%
Radeon RX 7900 XT
119%
GeForce RTX 3090 Ti
117%
GeForce RTX 4070 Ti SUPER
117%
Radeon RX 9070
117%
GeForce RTX 4070 Ti
107%
GeForce RTX 5070
106%
GeForce RTX 3090
104%
GeForce RTX 3080 Ti
103%
Radeon PRO W7800
100%
GeForce RTX 4070 SUPER
100%
Radeon RX 7900 GRE
98%
Radeon RX 9070 GRE
97%
Radeon RX 6950 XT
96%
GeForce RTX 4070
95%
Radeon RX 6900 XT
94%
GeForce RTX 3080
93%
Radeon RX 7800 XT
92%
Radeon RX 6800 XT
89%
GeForce RTX 5060 Ti 16 GB
83%
GeForce RTX 5060 Ti 8 GB
82%
Radeon RX 7700 XT
81%
Radeon RX 9060 XT 16 GB
79%
GeForce RTX 3070 Ti
78%
Radeon RX 6800
76%
Radeon RX 9060 XT 8 GB
74%
GeForce RTX 3070
73%
GeForce RTX 2080 Ti
73%
GeForce RTX 4060 Ti 8 GB
72%
GeForce RTX 5060
71%
Radeon RX 6750 XT
70%
GeForce RTX 3060 Ti
64%
Radeon RX 6700 XT
63%
GeForce RTX 2080 SUPER
59%
Radeon RX 7600 XT
58%
GeForce RTX 4060
58%
Arc B580
58%
GeForce RTX 5050
56%
GeForce RTX 2080
56%
Radeon RX 6650 XT
55%
Radeon RX 7600
55%
GeForce RTX 2070 SUPER
52%
GeForce GTX 1080 Ti
51%
Arc A770
51%
GeForce RTX 3060 12 GB
49%
Radeon RX 6600 XT
49%
Radeon VII
49%
Arc A750
48%
Steam Machine GPU
47%
Radeon RX 5700 XT
47%
GeForce RTX 2070
46%
Radeon RX 6600
44%
Arc A580
43%
GeForce RTX 2060 SUPER
43%
Radeon RX Vega 64
41%
GeForce RTX 2060
39%
Radeon RX 5700
39%
GeForce GTX 1080
38%
GeForce GTX 1070 Ti
38%
Radeon RX 5600 XT
37%
Radeon RX Vega 56
36%
GeForce GTX 1070
34%
GeForce GTX 1660 SUPER
32%
GeForce GTX 1660 Ti
32%
GeForce GTX 980 Ti
31%
GeForce RTX 3050 8 GB
31%
Radeon R9 FURY X
30%
GeForce GTX 1660
30%
Radeon RX 590
28%
Radeon R9 FURY
27%
GeForce GTX 980
27%
GeForce GTX 1650 SUPER
27%
Radeon RX 6500 XT
27%
Radeon RX 5500 XT
26%
Radeon RX 580
26%
GeForce GTX 1060 6 GB
25%
Radeon R9 390X
25%
GeForce GTX 690
25%
Radeon RX 480
25%
Radeon HD 7990
24%
GeForce GTX 780 Ti
24%
GeForce GTX 970
23%
Radeon R9 290X
23%
Radeon R9 390
23%
Radeon RX 570
23%
Radeon R9 290
21%
Radeon RX 470
21%
GeForce GTX 1650
20%
Radeon RX 6400
20%
Arc A380
19%
GeForce GTX 780
19%
Radeon HD 7970 GHz Edition
17%
GeForce GTX 590
17%
Radeon R9 280X
17%
Radeon HD 6990
17%
GeForce GTX 1050 Ti
16%
GeForce GTX 680
16%
Radeon R9 380
15%
Radeon HD 7970
15%
GeForce GTX 770
15%
Radeon R9 285
15%
GeForce GTX 960
15%
GeForce GTX 670
14%
Radeon HD 5970
13%
GeForce GTX 1630
13%
Radeon HD 7950
13%
GeForce GTX 1050
13%
GeForce GTX 760
13%
GeForce GTX 580
13%
GeForce GTX 660 Ti
13%
Radeon R9 270X
12%
Radeon HD 7870 GHz Edition
12%
GeForce GTX 950
12%
Radeon RX 560
11%
GeForce GTX 570
11%
GeForce GTX 660
11%
Radeon RX 460
11%
Radeon R7 370
11%
Radeon HD 6970
11%
GeForce GTX 480
10%
Radeon HD 7850
10%
GeForce GTX 295
10%
Radeon HD 6950
10%
GeForce GTX 750 Ti
9%
Radeon HD 4870 X2
9%
GeForce GTX 560 Ti
9%
Radeon HD 5870
9%
Radeon HD 6870
8%
GeForce GTX 470
8%
GeForce GTX 650 Ti
8%
Radeon HD 5850
8%
GeForce GTX 285
7%
Radeon HD 6850
7%
GeForce GTX 280
7%
Radeon HD 7770 GHz Edition
7%
GeForce GTX 275
6%
GeForce GT 1030
6%
GeForce GTX 460
6%
Radeon HD 4890
6%
Radeon HD 6790
6%
Radeon HD 5830
6%
GeForce GTX 650
5%
GeForce GTX 550 Ti
5%
Radeon HD 4870
5%
GeForce GTX 260
5%
Radeon HD 5770
5%
Radeon HD 7750
5%
Radeon HD 5750
4%
GeForce GTS 450
4%
GeForce GTS 250
4%
Radeon HD 4850
4%
Radeon HD 4770
4%
Radeon HD 4830
4%
Radeon HD 6670
4%
GeForce 9800 GT
3%
GeForce GT 640
3%
Radeon HD 5670
3%
GeForce 9600 GT
3%
GeForce GT 240
3%
GeForce GT 440
2%
Radeon HD 4670
2%
Radeon HD 5570
2%
GeForce GT 430
2%
GeForce GT 220
2%
GeForce GT 520
1%
Radeon HD 6450
1%
Radeon HD 5450
1%
Radeon HD 4550
1%
GeForce 9400 GT
1%
GeForce 210
1%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

Base Clock
1895 MHz
Boost Clock
2525 MHz
Memory Clock
2250 MHz
18 Gbps effective

Memory

Memory Size
32 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
576.0 GB/s

Render Config

Shading Units
4480
TMUs
280
ROPs
128
Compute Units
70
Matrix Cores
140
RT Cores
70
L0 Cache
32 KB per CU
L1 Cache
256 KB per Array
L2 Cache
6 MB
L3 Cache
64 MB

Theoretical Performance

Pixel Rate
323.2 GPixel/s
Texture Rate
707.0 GTexel/s
FP16
45.25 TFLOPS (1:1)
FP32
45.25 TFLOPS
FP64
1.414 TFLOPS (1:32)

Matrix Performance

INT4
181.0 TOPS
INT8
90.50 TOPS
FP16
90.50 TFLOPS
BF16
90.50 TFLOPS

Numeric Format Support

Vector
INT4
INT8
INT16
INT32
FP16
BF16
FP32
FP64
Matrix
INT1
INT2
INT4
INT8
MXFP4
NVFP4
MXFP6
FP8
MXFP8
FP16
BF16
FP32
TF32
FP64

Board Design

Slot Width
Dual-slot
Length
280 mm
11 inches
Height
110 mm
4.3 inches
Width
40 mm
1.6 inches
TDP
260 W
Suggested PSU
600 W
Outputs
3x DisplayPort 2.1
1x mini-DisplayPort 2.1
Power Connectors
2x 8-pin

Graphics Features

DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
2.0
Vulkan
1.4
Shader Model
6.9

Navi 31 GPU Notes

Super Resolution: FSR 4.1.1, XeSS 3
Frame Generation: FSR 3.1.6, XeSS 3
Ray Regeneration: No Support
Compute Units: 3rd Gen
Ray Tracing: 2nd Gen
Infinity Cache: 2nd Gen
AI Accelerators: 1st Gen
Radiance Display Engine: 1st Gen
Shader ISA: GFX11.0 (gfx1100)
Graphics/Compute: 11.0.0
Display Core Next: 3.2.0
Video Core Next: 4.0.0
JPEG Engine: 4.0.0

Per SIMD32:
- 10 KB Scalar Register File

Per CU:
- 16 KB Vector Data Cache
- 64 KB Local Data Share (GCN-Mode)

Per WGP:
- 16 KB Scalar Data Cache / K Cache
- 32 KB Instruction Cache
- 128 KB Local Data Share

Retail boards based on this design (1)

Name GPU Clock Boost Clock Memory Clock Other Changes
1895 MHz 2525 MHz 2250 MHz 293 mm/11.5 inches
