Building a racing drone can be an exciting and rewarding experience. It allows you to create a custom drone tailored to your needs and preferences. This complete article explains how to build a racing drone.
To build a racing drone, set a budget and goals. List the needed components like the frame, motors, ESCs, flight controller, propellers, FPV camera, and batteries. Gather tools like a soldering iron, screwdrivers, and a multimeter. Assemble the parts, configure the software, and fine-tune them.
This guide will walk you through the entire process. This is from planning your build to assembling and tuning your drone for optimal performance. Read this extensive article to learn more.
Table of Contents
Key Takeaways
- Plan And Research: Set a budget and define your drone’s purpose. Then, make a list of needed parts.
- Gather Tools: Collect the needed tools. For example, a soldering iron, screwdrivers, wire cutters, and a multimeter for building.
- Assemble And Tune: Put together the parts and set up the software. Now, adjust the settings for the best performance.
Planning Your Racing Drone Build
Planning your racing drone build is the first step to creating a fast and exciting drone. It involves setting a budget and defining your goals. It also includes researching the best parts and making a detailed list of everything you need.
Proper planning ensures you have all the components for a successful build. Let’s get into the details.
Setting Your Budget
Before building your racing drone, decide how much money you can spend. The costs can be very different based on the quality of parts and tools you pick. Setting a budget allows you to make smart choices and avoid spending too much.
This helps you plan better and ensures you get everything you need without going over your limit.
Defining Your Goals
Think about what you want your racing drone to do. Do you want it to be super fast, very agile, or able to fly for a long time? Knowing your goals helps you pick the right parts. Thus, you can also design a drone that works best for what you want. This way, your drone will be perfect for your needs.
Researching Components
Take time to learn about the different parts needed for your drone. Read reviews and comparison articles, and visit forums where experienced builders share tips. Understand the pros and cons of each component. This will help you choose the best parts for your drone.
This research ensures you build a drone that works well and fits your needs.
Creating A Parts List
After researching, make a complete list of all the parts you need. Include everything from the frame and motors to tiny screws. Having a detailed list helps ensure you don’t forget any important pieces. This way, you can gather all the necessary components.
You can also be ready to build your racing drone without missing anything.
Understanding Racing Drone Components
Understanding racing drone components is key to building a great drone. Learn about the frame, motors, and ESCs (Electronic Speed Controllers). Also, learn about the flight controller, propellers, FPV (First-Person View) camera, and batteries.
Each part has a specific role, and choosing the right ones will make your drone perform well. Let’s learn more about them.
Frame Types And Materials
The frame is the backbone of your drone. Frames come in different sizes and materials, like carbon fiber, which is light and strong. Pick a frame that fits your goals, whether it’s for fast racing or freestyle flying. The right frame makes your drone sturdy and helps it perform better.
Motors Brushed Or Brushless

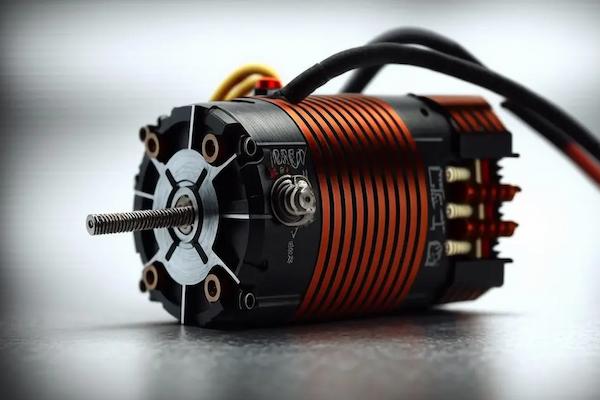

Motors are vital for your drone’s performance. Brushless motors are better than brushed ones. This is because they are more efficient, powerful, and last longer. This makes brushless motors the best choice for racing drones. Picking the right motors helps your drone fly faster and more smoothly.
Electronic Speed Controllers (ESCs) Explained
ESCs control how fast your motors spin. Pick ESCs that match your motors’ needs and provide the performance you want. Look for features like DSHOT or Digital Shot compatibility for smoother control. The right ESCs help your drone fly better. These will also help it respond quickly to your commands.
Flight Controllers
The flight controller is your drone’s brain, handling all the inputs and outputs. Popular choices are Betaflight and Cleanflight. Select a flight controller that works with your preferred firmware. That must also have the required features for your build. This helps your drone fly smoothly and respond well to controls.
Propellers
Propellers come in various sizes and materials. Lightweight and strong propellers are best for racing drones. They are made from carbon fiber or reinforced plastic. The propellers’ pitch (angle) and size impact your drone’s speed and maneuverability. Choose propellers that match your racing goals for optimal performance.
FPV Camera And Video Transmitter
An FPV (First-Person View) camera and video transmitter let you see what your drone sees in real time. For quick video feedback, pick a high-quality camera with low latency. Choose a reliable video transmitter with a good range for your flying area. This setup helps you control your drone better and enjoy the flight experience.
Batteries And Power Distribution
LIPO (Lithium Polymer) batteries are popular for racing drones. This is because they are powerful and lightweight. Ensure your power distribution board (PDB) or system manages power efficiently to all parts of the drone.
Proper power distribution ensures that each component gets the right amount of power. This is important for the best performance.
Gathering Tools And Equipment
Gathering the right tools and equipment is crucial for building your racing drone. You’ll need basic tools like a soldering iron, screwdrivers, and wire cutters, as well as additional items for setup and testing. Having everything organized and ready ensures a smooth and successful building process.
Essential Tools For Building
To build your racing drone, you’ll need basic tools. These include a soldering iron, screwdrivers, wire cutters, and pliers. A good soldering station is important for making strong and reliable connections. Having these tools ready will help you assemble your drone properly and ensure all parts work together well.
Additional Equipment For Setup And Testing
You’ll need a few extra tools to set up and test your drone. A multimeter checks electrical connections, a battery charger ensures your LIPO batteries are ready to go, and a smoke stopper protects your drone from damage during the first power-up. These tools help make sure your drone works safely and correctly.
Workspace Organization Tips
Keep your workspace organized by placing all parts and tools within easy reach. A clean, well-lit area makes building your drone smoother and more enjoyable. Use containers or trays to sort small components, and ensure your workbench is tidy.
Good organization helps you find what you need quickly and prevents mistakes.
Safety Gear And Precautions
Wear safety glasses when soldering and handling sharp tools to protect your eyes. Be careful with LIPO batteries, as they can be hazardous if not handled correctly. Always follow safety guidelines for each component you use.
Proper safety measures prevent accidents and keep you safe while building your racing drone.
Step-By-Step Assembly Guide
The step-by-step assembly guide will help you build your racing drone from start to finish. Follow these instructions to put together each part, connect the electronics, and set up the software. Taking it step by step ensures your drone is built correctly and ready to fly. Let’s learn more about it.
Preparing Your Work Area
Clear a space where you’ll build your drone and gather all your tools and parts. Ensure the area is well-lit and comfortable, so you can work for a long time without straining. Organizing your workspace helps you find everything easily and makes the building process smoother and more enjoyable.
Frame Assembly
Begin by putting together the frame following the manufacturer’s instructions. Make sure all screws and parts are tightly secured. Check that each piece is correctly positioned and firmly attached. A properly assembled frame provides a strong foundation for your drone and ensures it stays together during flights.
Motor Installation And Wiring
Attach the motors to the frame and secure them with screws. Sold the motor wires to the ESCs. Try to ensure each wire is connected correctly for the motors to spin in the right direction. Proper installation ensures your drone flies smoothly. This will also ensure it responds well to controls.
Mounting ESCs And Flight Controller
Secure the ESCs to the frame, either on the arms or inside the frame. Place the flight controller in a central, secure spot on the frame. Connect the ESCs to the flight controller using the provided wires.
Proper mounting and connections ensure your drone’s electronics work together smoothly for stable flight.
Installing And Balancing Propellers
Attach the propellers to the motors. Make sure each propeller is balanced correctly to prevent vibrations, which can negatively impact flight performance. Properly balanced propellers ensure smooth and stable flying, helping your drone perform at its best during races or freestyle flying.
Connecting And Securing Electronics
Connect the FPV camera, video transmitter, and receiver to the flight controller. Use zip ties or heat shrink tubing to secure all wires, preventing them from moving or getting damaged during flight. Keeping the electronics and wires secure ensures reliable performance and a tidy, organized build.
Software Setup
Install the required firmware on your flight controller. Use software like Betaflight Configurator to set up your drone’s settings and calibrate its sensors. Proper software setup ensures your drone flies correctly and responds well to your controls, making it ready for a smooth and stable flight.
Final Checks And Adjustments
Carefully double-check all connections, screws, and components on your drone. Ensure everything is tightly secured and correctly aligned. This thorough inspection helps prevent issues during flight.
Confirming that everything is in place before powering up ensures your drone operates safely and effectively, ready for its first flight.
Configuring And Tuning Your Racing Drone
Configuring and tuning your racing drone is the final step to ensure it flies well. This involves powering up the drone, updating the firmware, calibrating sensors, setting up the transmitter, and adjusting settings for stability and performance.
Proper tuning makes your drone ready for smooth, responsive flights. Keep reading to grasp all the details.
Powering Up And Checking Connections
Connect your battery to the drone and power it up. Listen for any unusual sounds and check for loose connections or other issues. Ensure all components are working correctly. This step helps identify and fix any problems before you start flying, ensuring a safe and successful first flight.
Firmware Updates For Electronics
Update the firmware for all your drone’s electronics, including the flight controller, ESCs, and receiver. This ensures they have the latest features and improvements. Using the newest firmware helps your drone perform better and more reliably, giving you a smoother and safer flying experience.
Calibrating Sensors And ESCs
Use the software to calibrate your flight controller’s sensors and ESCs. Proper calibration ensures accurate sensor readings and ESC performance, which are crucial for stable and smooth flight. This step helps your drone respond correctly to controls and maintain balance during flight.
Setting Up Radio Transmitter And Receiver
Follow the manufacturer’s instructions to bind your radio transmitter to the receiver. Configure the channels to match your drone’s controls. Check that all controls respond correctly to ensure proper communication between your transmitter and the drone.
This setup is vital for controlling your drone accurately during flights.
Tuning PID Settings For Flight Stability
Adjust the PID (Proportional, Integral, Derivative) settings to make your drone stable and responsive during flight. Begin with the recommended settings and fine-tune them based on your flying style and preferences. Proper PID tuning ensures your drone flies smoothly and reacts correctly to your controls.
Fine-Tuning For Performance And Responsiveness
Make final adjustments to your drone’s settings to optimize performance. Experiment with different configurations to find the best setup for your flying style. Testing and tweaking ensure your drone is highly responsive and performs well during flights, giving you the best racing experience.
First Flight (Finally!)
Take your drone to an open, safe area for its first flight. Begin with gentle maneuvers to check that everything is working correctly. Ensure the controls are responsive and the drone is stable before attempting more advanced moves. This careful approach helps confirm your build’s success and prevents potential issues.
FAQs
1. What Components Are Needed To Build A Racing Drone?
To build a racing drone, you need: a frame, motors, ESCs (Electronic Speed Controllers), flight controller, propellers, FPV camera, video transmitter, receiver, LiPo batteries, and a power distribution board. These components work together to ensure your drone flies fast and responds well.
2. What Tools Are Necessary For Building A Racing Drone?
To build a racing drone, you’ll need some tools. They include a soldering iron, screwdrivers, wire cutters, pliers, a multimeter, a battery charger, and a smoke stopper. These tools help you assemble the drone and connect components. They will also ensure everything works safely and correctly.
3. Can I Use Any Type Of Battery For My Racing Drone?
No. You must use LIPO (Lithium Polymer) batteries for your racing drone. LIPO batteries are lightweight and provide high power output, which is essential for racing drones’ performance and agility. Always choose the correct size and capacity, matching them with your drone’s specifications.
Conclusion: How To Build A Racing Drone
Building a racing drone involves careful planning, selecting the right components, and meticulous assembly. Start by setting a budget, defining your goals, and researching parts. Gather all the necessary tools and create a clean, organized workspace.
Follow the step-by-step assembly guide to assemble your drone, ensuring all connections are secure and components correctly installed. Once built, configure and tune your drone for the best performance. Test it in a safe area, starting with gentle maneuvers.
With patience and attention to detail, you’ll create a high-performance racing drone tailored to your preferences. Enjoy the process and happy flying!
